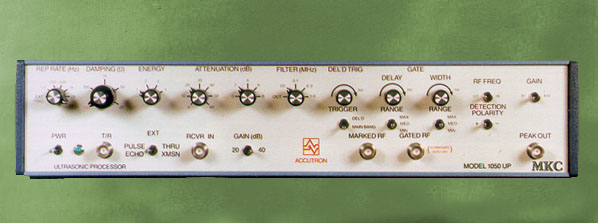

Model 1050UP Ultrasonic Processor (50 MHz P/R + Stepless gate + GPD) |
Technical Data
Broadband Receiver (1 kHz ~ 50 MHz) |
Time-out function |
|
Receiver gain selectable at 20 or 40 dB |
External reset function |
|
Linear attenuation range from 0 to 40 dB |
|
|
Stepless gate width and delay of 0.1 to > 200 μsec |
|
|
Pulse rep. rate adjustment from 0 to 5 kHz |
|
1035UP : 0.1 ~ 35 MHz Ultrasonic Processor |
|
|
1010UP : 0.1 ~ 10 MHz Ultrasonic Processor |
|
| Pulser Receiver Function | |
| Maximum pulser voltage | -180 V (nominal) into 50 ohms |
| Pulser rise time | ≤ 4 nanoseconds |
| Damping adjustment | 25,
50, 75, and 100 ohms, switchable 10 to 90 ohms, continuously variable |
| Rep rate | Internal
: 0 to 5 kHz External : 0 to ≥ 10 kHz |
| Pulser energy | 2 to 20 microjoules, switchable in 4 steps |
| Receiver gain | 20 dB / 40 dB, switchable |
| Receiver bandwidth | 0.001 to ≥ 50 MHz (60 MHz best effort) 0 - 3 dB |
| Linear attenuation range | 2 to 48 dB in 2 dB steps |
| High pass filter | Internally adjustable |
| Outputs | Receiver
monitor Sync out / external trig in |
| Stepless Gate Function | |
| Delay mode | Main bang or selected echo, switchable |
| Delay range | 0.1 to > 200 microseconds in three overlapping ranges |
| Width range | 0.1 to > 200 microseconds in three overlapping ranges |
| Blanking delay | 3 to > 100 microseconds |
| Time out window | 3 to > 400 microseconds, referenced to the main bang (optional) |
| Gate bandwidth | 0.5 to 50 MHz |
| Outputs | Marked RF / Gated RF |
| Peak Detector Function | |
| Linear dynamic range | 20 to 1000 mV |
| Conversion gain | x1 or x10, switchable |
| Peak level accuracy | ± 5% |
| Response
time (600 mV input) |
1 pulse at 5 MHz, ≤ 4 pulses at 30 MHz |
| RF polarity | positive or negative, switchable |
| Output impedance | 20 ohms |
| Output reset | none, 1, 5, or 10 main bangs, internally selectable |
| Output decay rate | < 0.1 V/sec or 20 microseconds, internally selectable |
 |
 |
