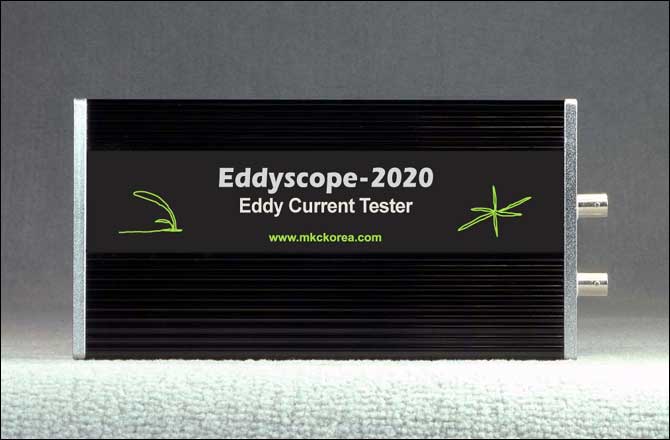

Eddyscope-2020 is an innovative Eddy Current system that is designed to be used with notebook or desktop PC. It is ideal for Educational use while it also can be used for traditional field test.

This unit comes with LabView driver libraries(optional) for easy and fast customized development of end user application. A basic LabView application example(optional) is also provided. All hardware functions are controlled by provided application or LabView driver and collected eddy current waveforms are displayed on the provided application or transferred to LabView driver.

You can simply connect it to the USB port and your computer becomes an eddy current system.

The system doesn’t even need batteries since power is provided through USB cable.

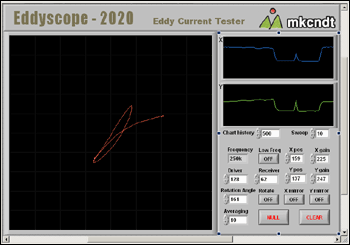

Application Software

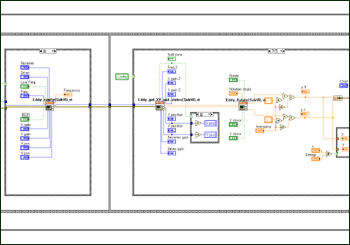

Labview Diagram

Includes
Eddyscope-2020 main body
Ultra-mobile PC(optional)
Carrying bag(optional)
LabView development package(optional)


Specifications
Frequency range: 1K ~ 25MHz
Gain: 0 to 80dB in 1dB steps
Probe drive: 0.5 ~ 8Vp-p
Rotation: 0’ ~ 350’
Display: Impedance plane, XY sweep chart
Null and Position controls
USB connection
