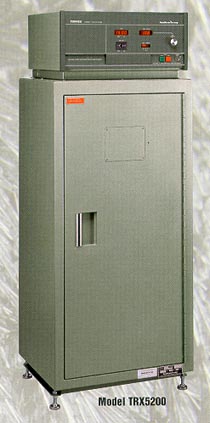

FAXITRON® X-ray 검사 시스템은 전자부품, 반도체 및 PCB 분야의 제조업체에서 각광받는 검사
 장비로 알려져 있다. FAXITRON은 지난 25년 동안 신뢰할 수 있는 디자인,오랜 수명 및 작동이
 간편한 4,500대의 캐비넷 타입 X-ray 시스템을 세계 시장에 공급해왔다.

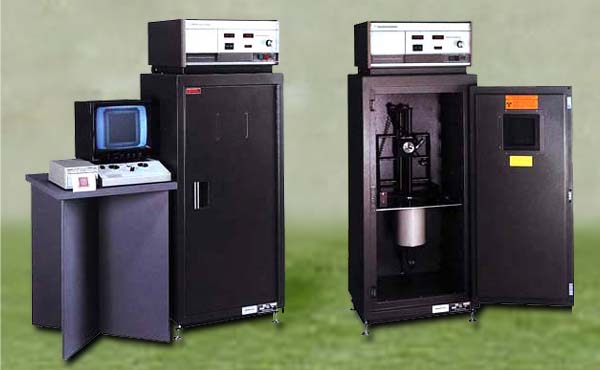

 FAXITRON의 모델 43855C는 마이크로포커스 시스템이나 혹은 다양한 리얼 타임 화상 시스템
 또는 필름 화상 시스템으로 사용할 수 있다.
 이 모델은 처음에 일반 필름 화상 캐비넷으로 사용하다가 후에 리얼 타임 시스템으로
 쉽게 바꿀 수 있다.
 화상은 고분해능 CCD 카메라가 부착되어 있는 X-ray image intensifier를 사용하여 수집되며,
 9″, 6″, 4″사이즈의 intensifier의 선택에 따라 배율 및 화상 분해능이 달라지게 된다.
 이 고분해능 비디오 화상은 화상 분석 시스템에 의해 분석되고 저장된다.
 검사물은 조이스틱 콘트롤에 의해 3축 혹은 5축 모터로 작동되는 manipulator를 통해 적정한
 위치에 놓여지게 된다.
 FAXITRON의 모든 X-ray 시스템은 미국 정부를 비롯한 모든 안전 규정을 만족시키도록 제작되며
 안전 장치가 완벽하게 구비되어 있다.

주요사양
· X-ray Sources: 110 kV, 0.5 mm spot size, 3.0 mA (standard)
                      110 kV, 70 ㎛ spot size, 300 mA (option : M110)
                      130 kV, 0.5 mm spot size, 3.0 mA (option : A04)
· Exposure timer : 3 sec. to 60 min in 1 second increment
· Maximum PCB inspection Size: Film-18″×16″
                                         Intensifier-9″×9″ without repositioning
· Maximum Source to Image distance: 52″X-ray film configulation
                                                32″Intensifier configulation



43855E Cabinet X-ray System


 Features
High Resolution X-Ray Imaging
Spacious Cabinet Dimensions For Larger
    Parts (Int. - 71"h x 51"w x 35"l)
Realtime or Film-Based Imaging Option
Shielded, Radiation Safe Enclosures
Ease of Operation
Convenience and Space Saving
Optional Horizontal "Side-Shooting"
    Configuration
 Applications
Printed Circuit Boards
Castings
Plastic Injection Moulding
Automotive Parts
Aerospace Components
Electrical / Mechanical Components
Medical Devices






   Ease of operation
   High contrast, high resolution imaging
   Convenience and space saving
   Shielded, radiation-safe enclosures

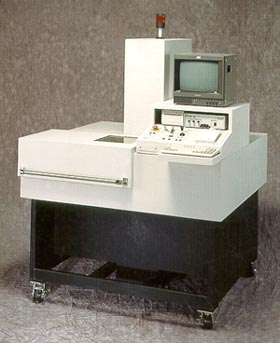

CS-100 Circuit Scan


  BGA and DCA Attachment
  Inner Layer Misregistration
  Component Registration
  Buried Vias
  Fine Pitch Solder Quality
  Feature Measurement
  Encapsulated Assemblies
  Wire Sweep
  Die Attach
