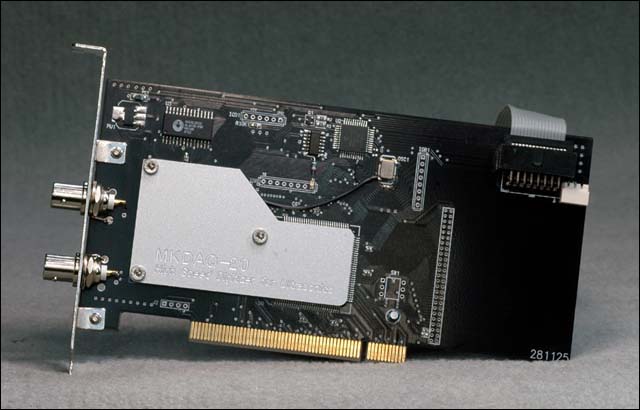

(클릭하면 확대된 사진을 볼 수 있음)



MK DAQ-20 is a High speed Digitizer that is designed for factory automation and research application.
This unit implements famous LabView technology enabling engineers to be able to utilize abundance of LabViwe toolkits for fast and flawless development of ultrasonic testing system.
This unit also has integrated 4 axis motion controllers excluding the need of extra motion controller board.
Since DAQ and Motion controller is configured by supplied LabView driver at the same time synchronizations between two units is easy and straightforward.
General purpose Input and output port is also provided for other needed controls
　
MKDAQ-20의 특징

All hardware functions are controlled by provided LabView driver.
4 Axis Motion control unit is included.
Provided LabView drivers are straightforward and easy to use.
Has 4 input and output general purpose IO.
Adaptor for Motor Driver is Provided.

MKDAQ-20의 사양

DAQ Resolution: 8bit
Sample Rate: 40MS/s Real-Time
Bandwidth: 30MHz
Input range: ±500 mV to ±5 V
Memory: 430,000 samples
4 Axis Motion Control Units for Stepper
Maximum pulse rate: 2 MHz (full, half, and microstep)
Step output mode: Step and direction
Digital I/O Ports: 4, TTL
Bus: PCI
Software Driver: LabView
Operating Systems: Windows 2000/NT/XP
