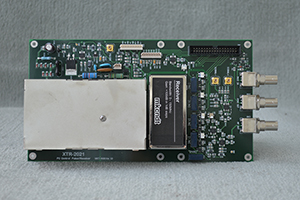

| 모델 (Model) |
XTR-2021 |
| 펄서 (Pulser) |
| Amplitude |
400volts into 50Ω |
| Spike Pulse Energy |
Selectable in 5 steps |
| Repetition Rate |
100Hz to 20kHz |
| Pulse Rise Time |
Less than 15ns |
| Damping |
Selectable, 28, 33, 40, 50, 67, 100, 200Ω |
| Pulse Voltage |
Selectable, 250V, 300V, 350V, 400V, 450V |
| Mode |
User-selectable Pulse-echo or through transmission |
| Sync Output |
+5Vp-p TTL and CMOS compatible |
| External Trigger Input |
Triggers at positive edge of 3-5V square wave |
| |
|
| 리시버 (Receiver) |
| Tuned Frequencies |
1, 2.25, 5, 10MHz |
| Gain |
Adjustable -10 to +80㏈ in 0.5㏈ steps |
| High-Pass Filter |
PASS(40kHz), 500kHz, 1MHz, 2.5MHz, 7.5MHz |
| Low-Pass Filter |
PASS, 1.5MHz, 3.5MHz, 6.5MHz, 15MHz |
| Display Output |
RF signal |
| Output Impedance |
50Ω |
| Output Voltage |
±1Vp-p into 50Ω |
| Operating Temperature |
-10°C to +50°C |
|
