Ultrasonics
Parameters
· Pulser: Frequency: 0.45 ¡ 20MHz in steps of 0.05 to 1Mhz
· Receiver: Dynamic Range: 90dB
DAC: 15 Programmable points
· Gates: Triggering: Positive or negative
Threshold: 10 up
to 80% in steps of 0.5%
Acquisition
- A-Scan:
· Test display ·
Transient or maximum signal acquisition
- B-Scan & C-Scan
· N¡Æ of gates · Amplitude
and / or distance (TOF) · Palette
· Synchro on: · Internal pulse
· Encoder inputs · Indexer cards
inputs
· Scan length-Travel length
· Travel step (pitch)
- Full B-Scan:
· Test display · Transient or maximum signal
acquisition · Colour Palette
· Synchro on · Internal pulse
· Encoder inputs · Indexer
cards inputs
· Scan length-Travel length ·
Travel step (pitch)
Interfacing with bench, manipulators...
· Scan axis selection ·
Increment axis selection · Scan
axis speed
· Inorement resolution · Scan
& travel lengths
- The setting of these parameters is by keyboard and / or by teach & learn.
Image analysis
· Colour Palette ·Zoom
·Cursor · Histograms (Line X, Column Y, window)
·Cursor indications (Amplitude, Distance, Coordinates) ·
Display of X, Y section
Report PRINTOUT
· Colour image with annotated commentary
· Creation of exportable files for EXCEL, LOUTS 1.2.3, etc...
· Additional text with WINWORD
ST-3000ÀÇ Àû¿ë·Ê
![](10.jpg)

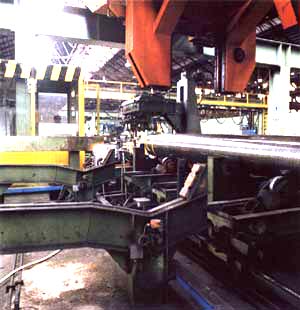

Black tubeÀÇ ¿Â¶óÀÎ °Ë»ç ½Ã½ºÅÛ (4 ä³Î); µÎ²² ÃøÁ¤ ¹× Å©·¢
°Ë»ç
¡¡
![](12.jpg)

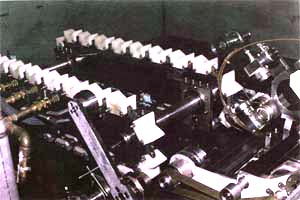

BarÀÇ ¿Â¶óÀÎ °Ë»ç ½Ã½ºÅÛ (8 ä³Î); Bar diameter: 12 to 50mm
![](14.jpg)

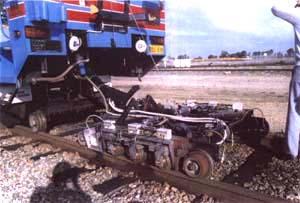

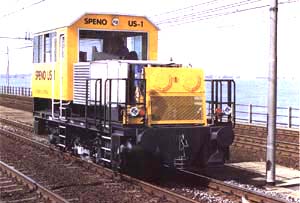

ÃÊÀ½ÆÄ ·¹ÀÏ °Ë»ç ½Ã½ºÅÛ; 32 ä³Î, ¸®¾óŸÀÓ µ¥ÀÌÅÍ È¹µæ ¹×
ó¸®, B ½ºÄµ Ç¥½Ã, 72Km/h
¡¡
