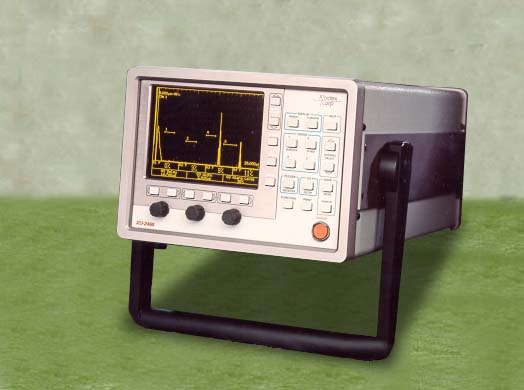

XU-2468: 8채널 초음파 검사 장비 |
|
| Features of the XU-2468: · Large EL display · Fast and easy Test Setup - Direct access keys and three quick knobs allow immediate changes of multiple functions. · On Line Help makes manual nearly obsolete. · Digital Single Shot Peak Detection can accurately detect & measure a flaw each rep, at a rep rate of 24 khz. The XU-2468 is an eight channel flaw detector and thickness gauge incorporating an electrolumine- scent waveform display panel. Its high-speed systems capability, coupled with its user-friendly design make the XU-2488 the best choice. The XU-2468 is ideally suited for high-speed systems application. Digital Single Shot Peak Detection enables the instrument to detect and measure a flaw in one rep. This , combined with a rep rate of 24 KHz, results in unparalleled high-speed testing. Four gates are incorporated into the XU-2468 to provide unmatched flexibility and economy. Flaw detection, thickness detection, surface following, back following and back echo attenuation capability are all provided Each channel can be individually set to operate as a flaw detector or thickness gauge. If a channel is set to flaw detect then Gates 1-4 can be enabled as flaw detectors. If a channel is set to thickness detect then Gate 4 is a Hi-Res thickness gauge with a resolution of ±.0001". Gate 1 can always be used as a surface detector for any gate set to surface follow. The large 4.5 × 3.4 display screen provides an uncluttered view of the waveform. Four measurements and three Quick Knob functions are visible without interrupting the waveform display. A pop-upcursor enables quick setup of ultrasonic tests and provides measurements of tests and provides measurements of both thickness and amplitude. All Xactex keys and functions are straightforward and indicated with clear, concise text-no confusing graphics. Large, legible characters are used for all measurements and instrument settings. Testing can begin quickly with th XU-2468, Direct Access Key (such as PULSER/RECEIVER, GATE1-4 and RANGE) require only a single key stroke for immediate adjustment of multiple instrument functions using the three Quick Knobs. Once a Direct Access Key is pressed, the most commonly adjusted functions appear above the three Quick Knobs and a pop up Function Menu appears in the upper right hand corner. The left and middle Quick Knob are reserved for controls which are frequently changed. You can select any control from the Function Menu and adjust it with the right Quick Knob using the Menu Select Keys. The pop up menu disappears at the touch of a key, so your waveform display remains uncluttered. A user-defined Key, MY MENU, can be set up by the operator to access the three functions most often used in a test. If you have any questions you do not need to search for your manual. Press the Help key and a pop up window immediately displays a description of the function you are adjusting. The advanced design and performance of th XU-2468 provides high-speed testing without complicated setup procedures. So you can concentrate on your testing... not an instruction manual. Direct Access Keys PULSER/RECEIVER...allows access to all P/R functions, including GAIN, REP RATE, REJECT, DAMP. GATE 1-4.................individual access to all gate positions and flaw and thickness gate functions, including Alarm Level, Back Following Gate, Qualifiers. RANGE.............................controls horizontal range functions, such as RANGE, DELAY, VELOCITY. MY MENU...............user-defined key to access the three most frequently-used functions in a test. FUNCTION.................accesses advanced instrument setups, such as I/O, DATA LOGGER, Buzzer. CURSORS................allows quick Amplitude/Thickness measurements, without positioning the Gate. CH SETUP................allows quick setup of the selected channel to operate as a flaw detector or thickness gauge. SPECIAL KEYS CHANNEL SELECT.........................................selects the channel of interest ti display or calibrate. SAVE MEAS.................................immediately saves a Thickness and /or Amplitude measurement. SAVE WAVEFORM.............................................................immediately saves displayed waveform. PRINT..................................prints either the displayed waveform or the data logger .measurements. FREEZE.....................................................freezes the displayed waveform for analysis or printing. LOCK................locks front panel controls to prevent inadvertent changes to settings during a test. Additional Features A split screen allows the A-Scan and a magnified section of the A-Scan to be displayed simultaneously. Memory can store up to 300 waveforms and 30 setups. Amplitude and thickness measurements are made each rep. Physical Specifications Dimensions............................................................................... 9 1/8"×W 6 5/8"H×16"D Weight...................................................................................... 15 lbs Operating Temperature............................................................... 0℃ to 55℃ Power....................................................................................... 100W Display Specifications Size.......................................................................................... 4,5" × 3,4" Type......................................................................................... flat panel electroluminescent(EL) Update Rate.............................................................................. 60Hz Viewing angle............................................................................. 160? Pulser Specifications Rep Rate.................................................................................. 100Hz to 24 KHZ, in 100 Hz steps Damping................................................................................... selectable, 50, Hi. Pulse Width.............................................................................. adjustable, 30-650ns Amplitude................................................................................. 30V into 50 Receiver Specifications Pre-Amp Gain........................................................................ adjustable, -30dB to in 0.1dB steps Common Gain........................................................................ selectable, 0-80dB in 10dB steps. Turned Frequencies................................................................ 1, 2.25, 5.0 ,10.0, 15.0 Wideband Bandwidths............................................................. 1-20, 3-20, 5-20, 5-20MHz Waveform Display................................................................... switchable; RF, Detected RF (+,-,±, Hi Res ±), Time-of-Flight (TOF), and Echo Blanking. Data Logger Specifications 2500 measurement readings total (Thickness and/or Amplitude). Up to 99 flies may be stored to print or review. Imput /Output Specifications Command Link................................................................. RS-232, 9.6K Baud or RS-485, 1M Baud Data Link.......................................................... RS-485, 1M Baud 20bit Thickness, 8 bit Amplitude. Analog Output.............................................. up to 4 provided. An output can be assigned to any combination of 4 measurements (Flaw or Thickness) Alarms......................................................................... selectable Hi/Lo for each Thickness Gate; TTL alarm for each Amplitude Gate. Parallel Port............................................... generate hard copies of waveform or data on a printer. Accessories NDT Silver.......................................... Windows 95/NT based software with instrument control, strip charts, alarms, and reports. |
|
|
|
